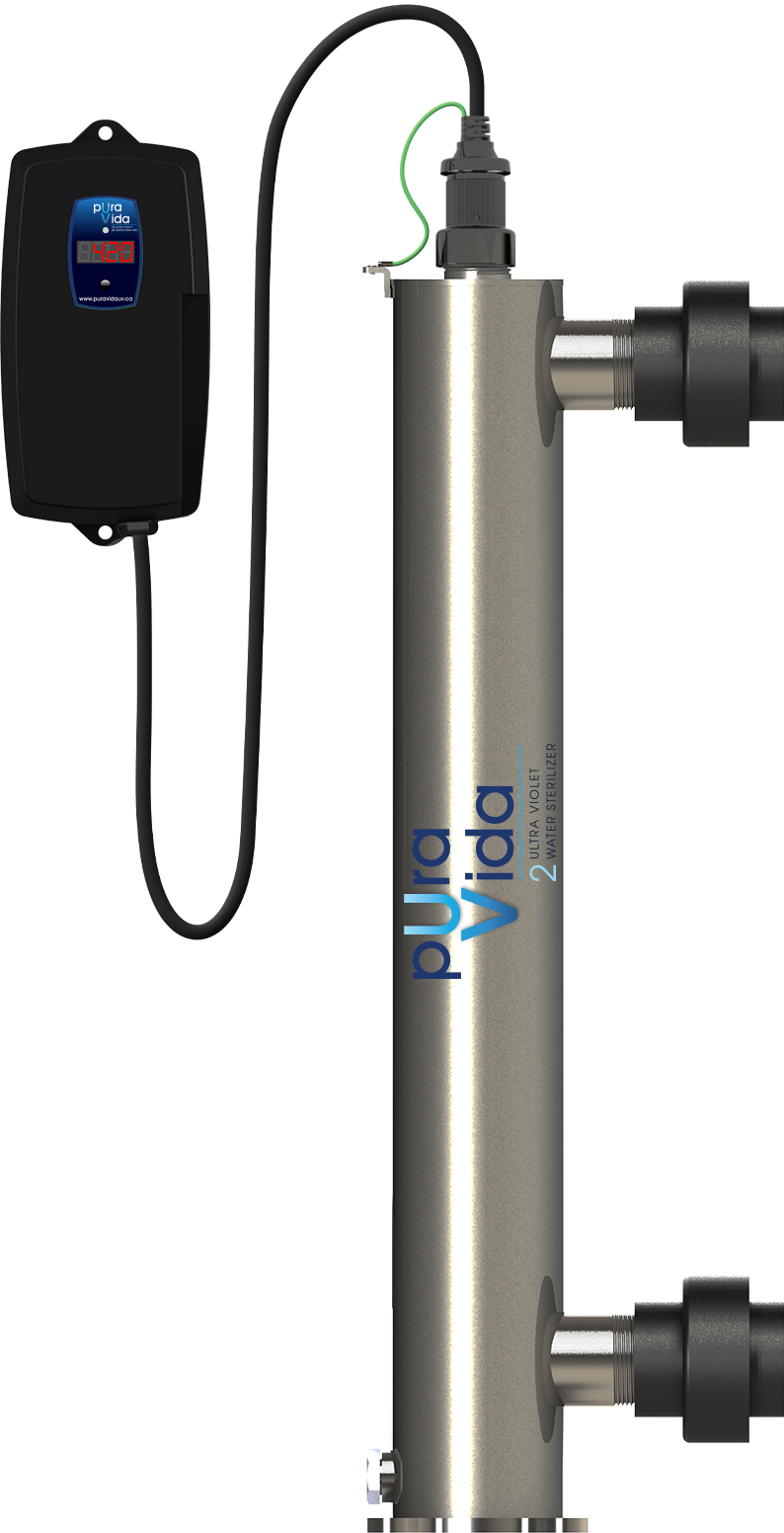

PuraVida UV Systems
Ultra Violet Water Sterilizers effectively eliminate microorganisms in your pool and spa, keeping your water cleaner and healthier, while dramatically reducing chemical usage.
- Built in lamp monitor – audible and visual indication of lamp life
- Auto sensing dual voltage controller for plug in or hard wired use
- 316L Stainless steel chamber for maximum reflective disinfection
- Drain port for easy winterization
- Built in zinc anode
- User friendly bayonet style lamp connector (no extra tools needed)
- Proprietary low pressure (LP) coated UV lamps with ceramic bases for durability and long life (10,000 hours)
- Vertical or horizontal installation
- Manufactured in North America
- A safe and eco-friendly way to keep your pool water clean and free of harmful bacteria
Puravida FEATURES
STANDARD FEATURES
Thoughtful features to make installation and operation seemless.
Proudly Made In Canada
Using a domestic manufacturer allows for greater collaboration to build a product that is best suited to our market, while supporting our local economy. Supply and access to parts is timely and reliable.
ELECTRONIC CONTROLLER
Auto sensing dual voltage controller for plug in or hard wired use. Built in lamp life monitor with visual and audible indication or remaining run time.
ZINC ANODE DRAIN PLUG
Drain port for easy winterization, complete with zinc anode. A zinc anode is used to prevent corrosion of pool equipment or stainless steel components in the pool or on the pad.
EASY INSTALLATION
Installation made easy with built in interior basket for precise parts placement. Minimal steps making for quick and easy install without guesswork.
PURAVIDA2 BROCHURE – ENGLISH
PURAVIDA BROCHURE – FRENCH
Technical Specifications
MODEL
PV2-42C
PV2-82C
Flow Rate
42 GPM
82 GPM
159 lpm
310.4 lpm
9.5 m³/hr
18.6m³/hr
Port Size
1.5″ MNPT
2″ MNPT
Electrical
90 – 2265v/50-60Hz
(IEC POWER CORD INCLUDED)
Plug Type
AMERICAN, NEMA 5/15, 3 WIRE FOR ALL 110V SYSTEMS
Lamp Watts
67
101
Replacement Lamp
PV2RL-600HO
PV2RL-950HO
Replacement Sleeve
PV2RQ-600
PV2RQ-950
Chamber Material
316L STAINLESS STEEL, A249 PRESSURE RATED TUBING,
POLISHED & PASSIVATED
Chamber Dimensions
3.5 X 26.9″
(8.9 X 68.3CM)
3.5 X 40.7″
8.9 X 103.4CM0
Controller Dimensions
8.6 X 4.2 X 4″ ( 21.7 X 10.8 X 10.2 CM)
Operating Pressure
0.7 – 10.3 BAR (10-150 PSI)
Operating Water Temperature
2-40°C (36-104°F)
Lamp Change Reminder
YES (4-DIGIT LED DISPLAY)
Visual Lamp Out Indicator
YES
Audible Lamp Out Indicator
YES
Shipping Weight
7.9 KG
(17.5 LBS)
10.0 KG
(22.1 LBS)
Warranty
3 Years on Chamber and Electronics
1 year on Quartz Tube and Lamp
